LMK 6 color: High-precision camera for color and light measurements
Image resolved luminance and color measuring camera

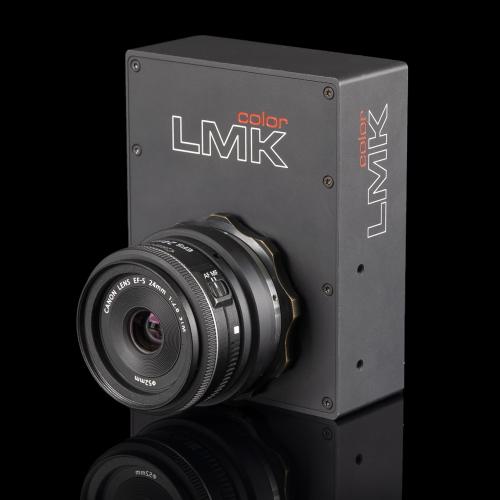

The LMK 6 color is TechnoTeam's color measurement camera and used in many ways as a standalone measuring device. It is designed to be compact and lightweight and can be used in almost any color measurement application. As it is one of TechnoTeam's core products it is also used in our other camera based measurement systems.

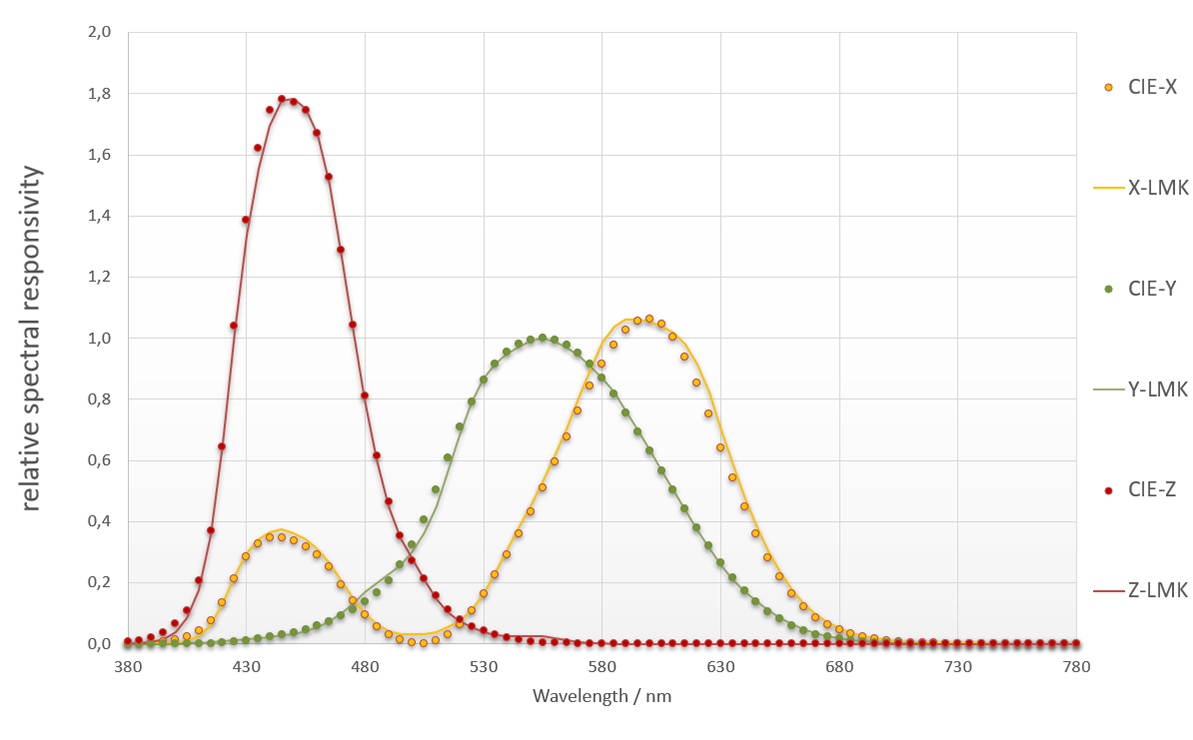

The system is currently available in three different basic models with different sensor sizes. The LMK 6 color is equipped with a color filter wheel, with which measurements of color and brightness can be evaluated according to human brightness perception (acc. to CIE 1931 XYZ 2° standard observer).
Advantages
- Individual calibration of each LMK
- Additional calibration for high-contrast measurements
- Wide range of lenses with customizable settings
- Size and Weight
- High transmissive spectral matching glass filters
- Further special filters available (scotopic, melanopic, infrared, Blue Light Hazard, BK7)
Your own LMK product package
- LMK 6 (5 MP/12MP/30MP)
- Selected lenses with optional ND filters
- Glass filter for luminance and colour measurement according to CIE 1931 XYZ 2° observer
- Two optional filters
- Individual calibration
- Software with optionalen add-ons
- Lifelong support
WHICH LMK 6 COLOR MODEL IS RIGHT FOR YOU?
The LMK 6 color is available in three different model types with different megapixels, lenses, optical components and software application packages available. Click on the LMK 6 color types below to find out the differences and advantages!
Additional filters for your LMK color

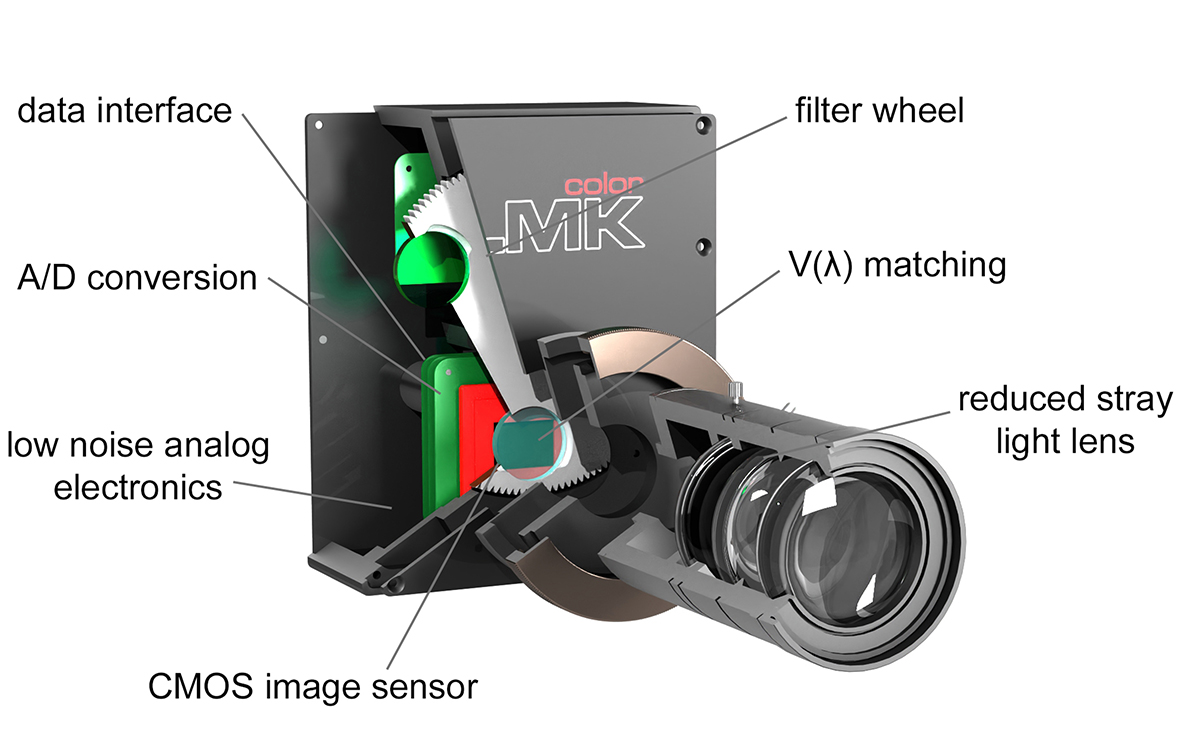

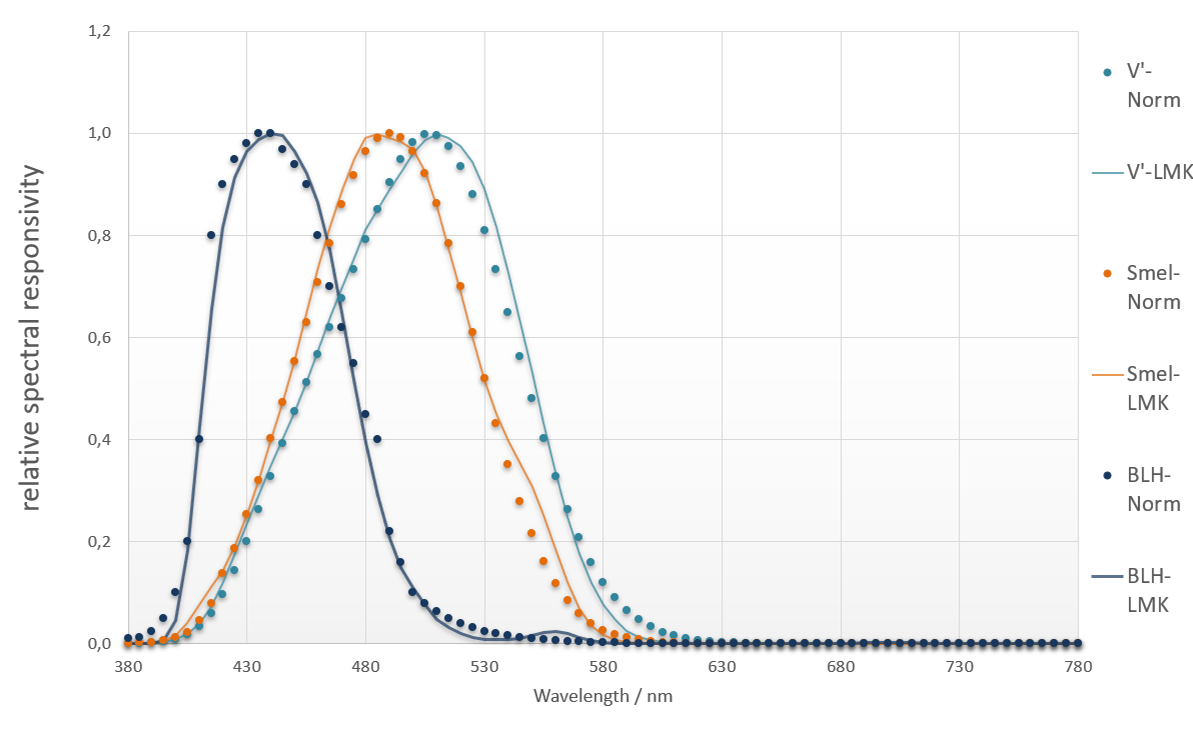

The integrated filter wheel of the LMK 6 color is equipped with 4 full-glass filters for luminance and color measurement according to CIE-XYZ 2° standard observer and offers space for two additional filters. These can be equipped with our special filters:
- Scotopic filter V'(λ)
- Melanopic filter Smel(λ) (ipRGCC, according to CIE S 026:2018)
- Infrared filter (NIR range from 780 - 1100 nm).
- Blue Light Hazard Filter (according to IEC 62471)
- BK7 glass filter to work with the spectral responsivity of the sensor.
Result data
- Luminance distributions in measured images L(x,y)
- Color and chromaticity distributions in measured images
- Supported color spaces: CIE-RGB, CIE-XYZ, sRGB, EBU-RGB, User, Lxy, Luv, Lu’v’, L*u*v*, C*h*s*uv , L*a*b*, C*h*ab, HIS, HSV, HSL, WST (dom. wavelength, color saturation, corr. color temperature CCT)
- Derived photometric parameters such as illuminance distribution E(x,y) and luminous intensity distribution I(x,y)
- Statistical data for use in various calculation softwares (z.B. EXCEL®, MatLAB®, LabVIEW®)
